Conveyor to remove sawdust TOL-2

Price: 12 000 ₽

Checkout

Conveyor Length, m: 6-26

Conveyor Belt Width, mm: 650

Incline Angle (deg.): 10-30

Lifting height of the sloping part, m: 0,4-3

Motor Power, kW: 1,5-5,5

Movement Speed, m/s: 1,2

Chip conveyor TOL-2

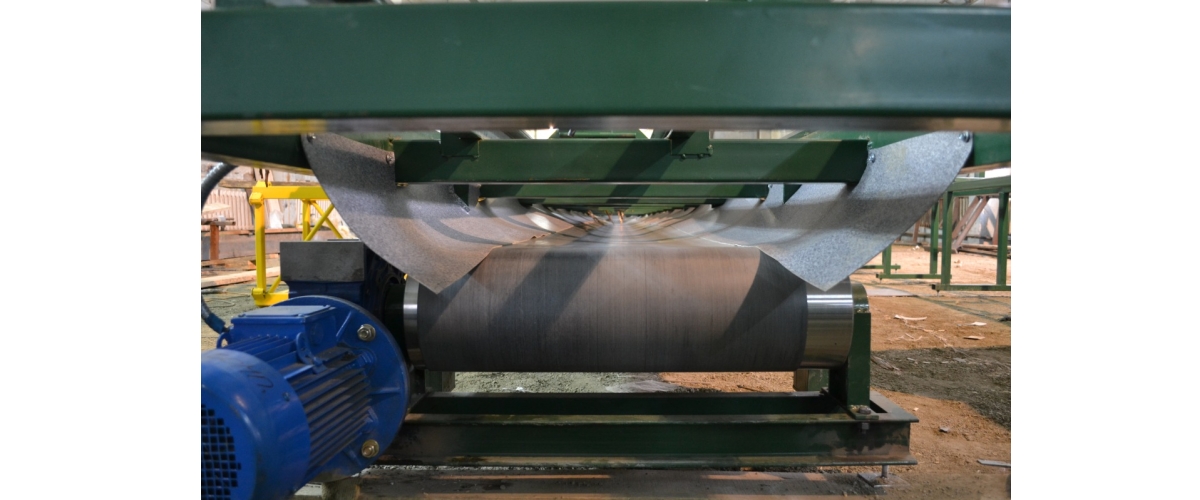

TOL-2 - This conveyor belt is designed to automatically remove chips and sawdust from under the bed log lathe. The presence of the conveyor belt to a large extent not only improves the performance of any log lathe, as well as culture and ease of manufacturing round logs. Structurally, TOL-2 consists of a special flexible conveyor belt (8 mm), moving along the guide rollers, belt tension is performed tensioning drum with adjustable bias tape. Execution of the belt conveyor can be both RAMS (on a separate frame) and embedded (the design of the conveyor is embedded in the bed log lathe). The modular design of the conveyor assembly of different configurations are possible, consider some of the options below:

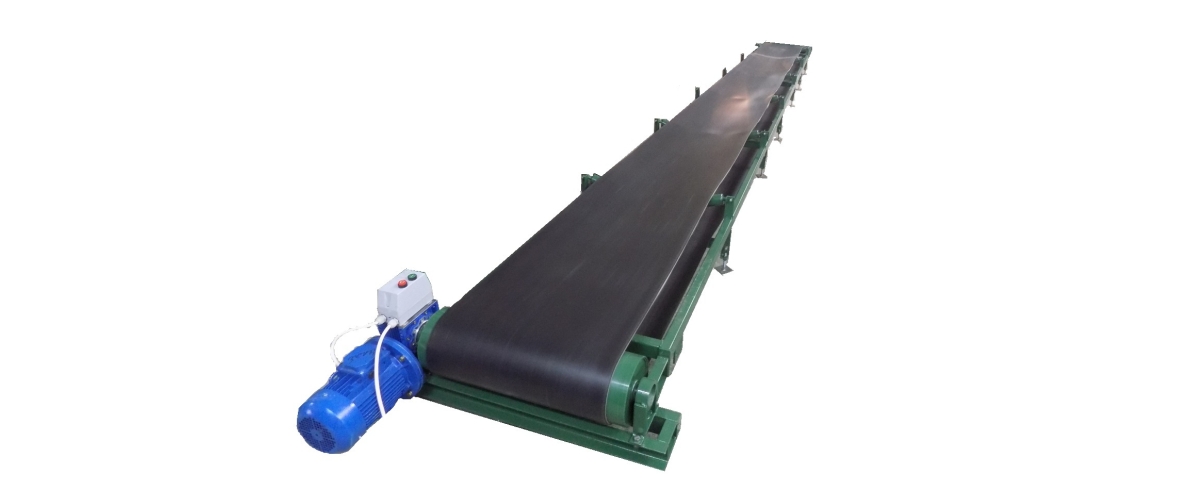

Direct (schematic side view)

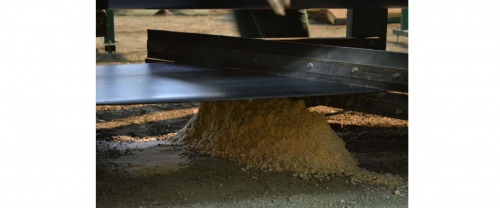

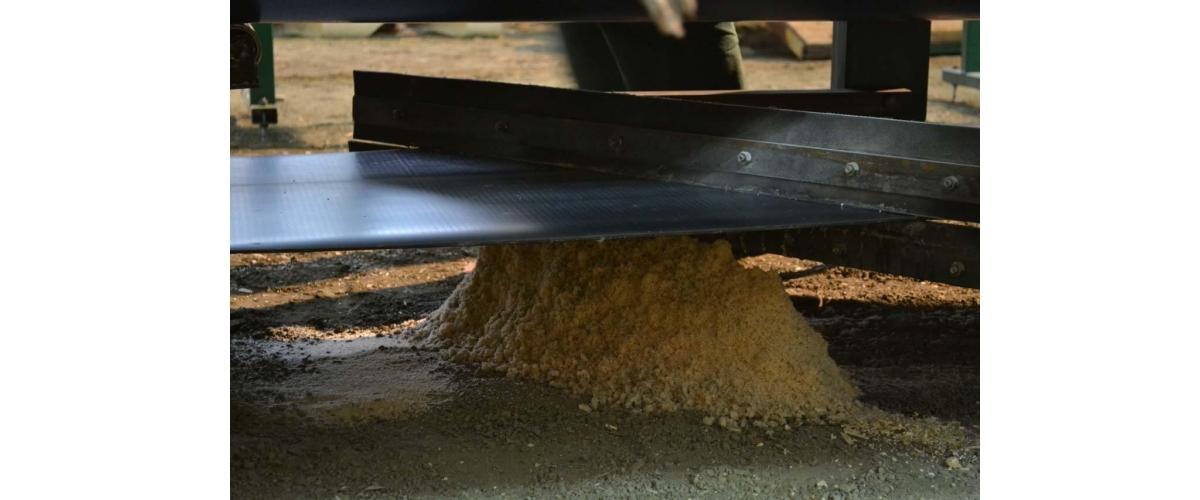

It is used to remove the chips into a hopper (Drive), located below the floor.

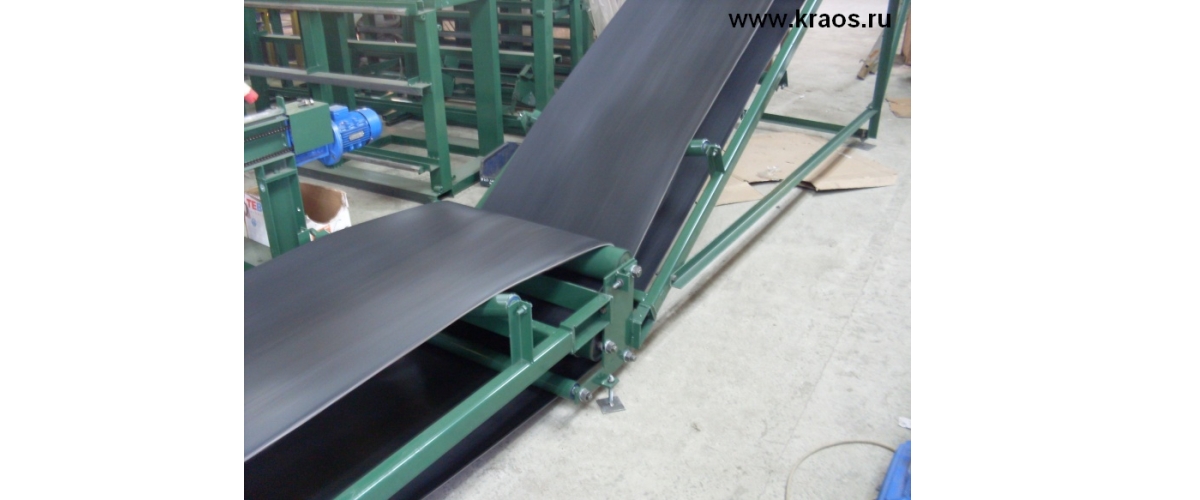

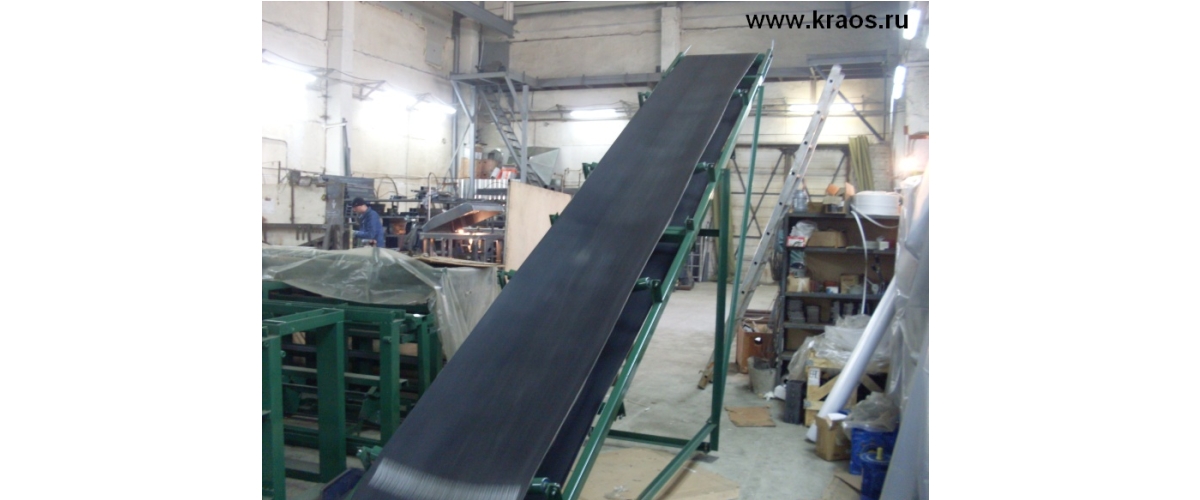

Trans + rise (schematic side view)

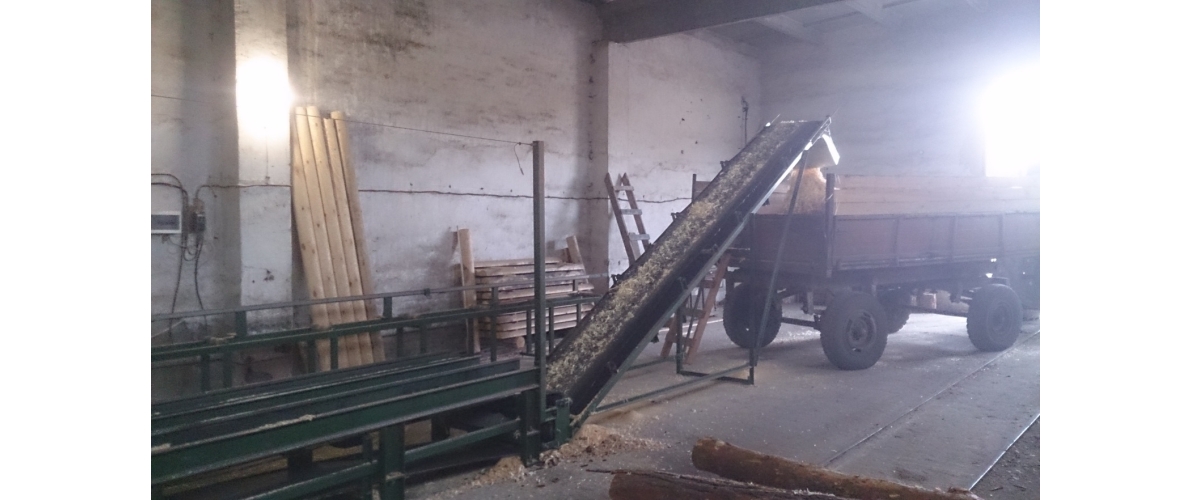

It is used to remove the chips into a hopper (Drive) or cart located above the floor.

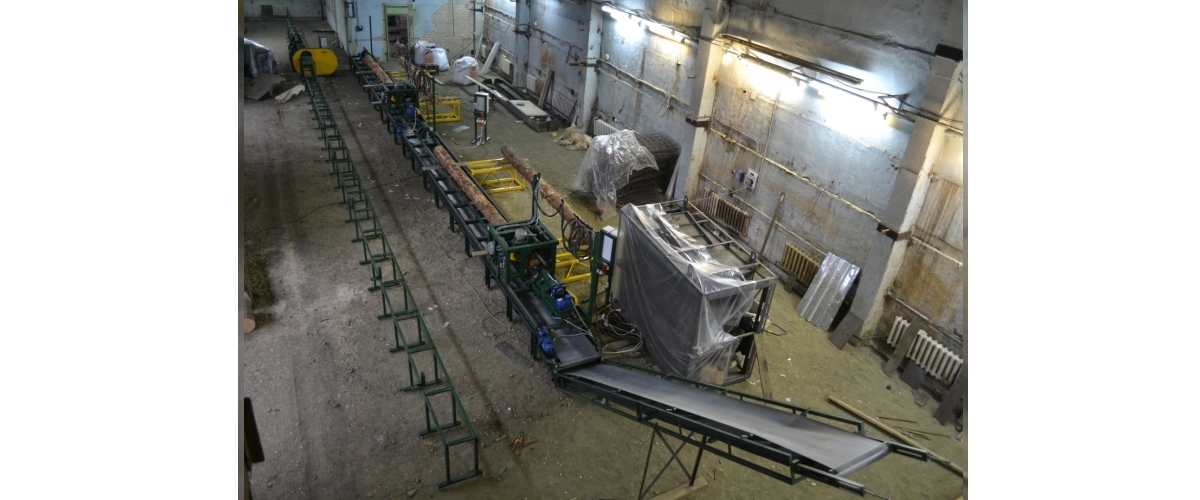

Combined (schematic plan view)
It is used for removal of chips perpendicular to the machine frame, structurally it consists of two branches (two conveyors)

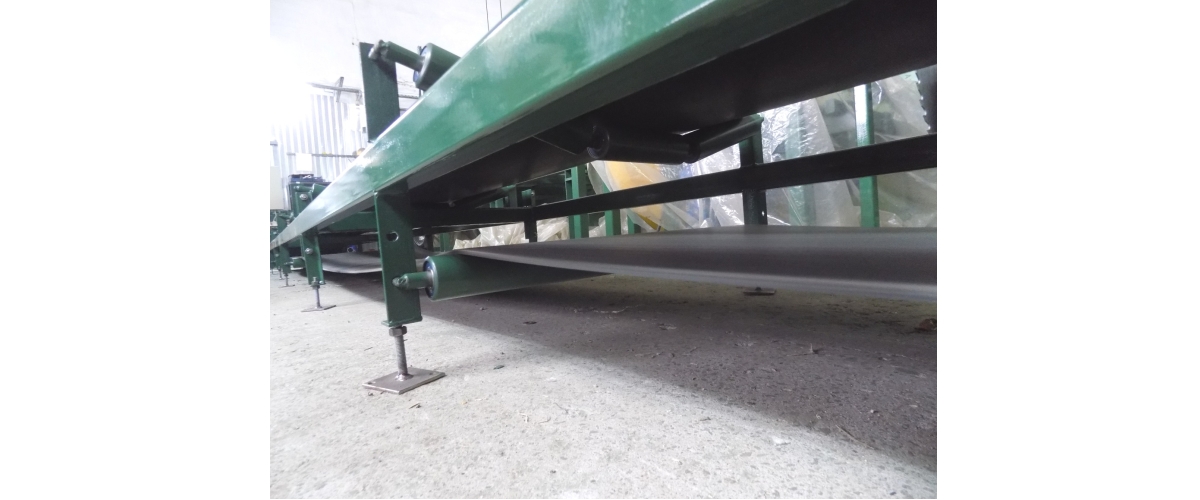

Conveyor to remove sawdust TOL-2

Video of theconveyor belt TOL-2:
